Custom Templates for AJAX Grids in Data Aquarium Framework Applications

Data Aquarium Framework and Aquarium Express provide excellent support for custom form templates.

New feature in Data Aquarium Framework allows to create inline form templates for rows of grid views in edit mode.

See live demo of this feature now.

Generate  a Data Aquarium project from Northwind database. Create a new form with name GridTemplate.aspx based on MasterPage.master. Enter the following markup.

<%@ Page Language="VB" MasterPageFile="~/MasterPage.master" AutoEventWireup="false"
    CodeFile="GridTemplate.aspx.vb" Inherits="GridTemplate" Title="Grid Template" %>

<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="Server">
<asp:Content ID="Content2" ContentPlaceHolderID="Header1Placeholder" runat="Server">
    Grid Template
<asp:Content ID="Content3" ContentPlaceHolderID="Header2Placeholder" runat="Server">
<asp:Content ID="Content4" ContentPlaceHolderID="BodyPlaceholder" runat="Server">
    <div id="Products" runat="server" />
    <aquarium:DataViewExtender ID="ProductsExtender" runat="server" Controller="Products"
        TargetControlID="Products" />

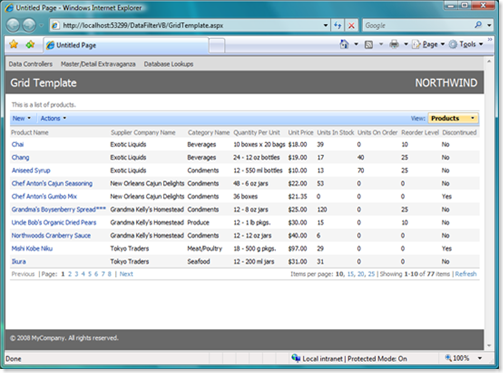

View this page in a web browser. It will look like the one in the next illustration.


Change ~/Controllers/Products.aspx data controller descriptor by moving action with Edit command to be the first action in the scope of grid.

<actionGroup scope="Grid">
  <action commandName="Edit" />
  <action commandName="Select" commandArgument="editForm1" />
  <action commandName="Delete" confirmation="Delete?" />
  <action whenLastCommandName="Edit" commandName="Update" headerText="Save" />
  <action whenLastCommandName="Edit" commandName="Cancel" />

Refresh the page and click on any link in the first column. This will force the grid view to display all fields in selected row to present the edit mode user interface.


This works well for most applications. Sometimes you may need to display just a few columns when user browses through records but would rather have more fields available for editing without leaving the grid view.

Enter the following HTML fragment right after the DataViewExtender in GridTemplate.aspx page.

<div id="Products_grid1" style="display: none">
    <table style="border: solid 1px silver; margin: 4px">
            <td valign="top">
                <div style="margin-bottom: 4px">
                <div style="margin-bottom: 4px">
            <td valign="top">
                <div style="margin-bottom: 4px">
                <div style="margin-bottom: 4px">
            <td valign="top">
                <div style="margin-bottom: 4px">
                <div style="margin-bottom: 4px">

Refresh the page in a web browser and click on any product link in the first column of the grid view.


Your template will be displayed in place of the selected row. The template definition technique is equivalent to the one that you would use with custom form templates. The popup menu on the action bar allows user to save or cancel changes. All controls behave in the same way as they do in a regular form view rendered by framework.

From user's perspective such grid is a lot like an accordion view, which expands the row when you edit the record. You can further enhance the presentation of inline form by introducing custom Save and Cancel buttons. Add a second table row to the table in the template Products_grid1.

    <td colspan="3" align="right" style="border-top: solid 1px silver; padding: 4px;">
        <button onclick="Web.DataView.find('ProductsExtender').executeAction('ActionBar', 0, null, 0)">
        <button onclick="Web.DataView.find('ProductsExtender').executeAction('ActionBar', 1, null, 0)">

The novelty here is onclick event handler that executes the same actions that are available in the Record menu on action bar. This code is written in java script and is executed in a browser when user clicks on a button.

The first argument of executeAction method defines the action scope. The second one is the action index. Third argument represents the row in the grid. You don't know, which row is selected, but Web.DataView component does. That is why we are passing null here. The last argument defines the index of action group in the scope, which is handy if you have more than one action available on action bar in edit mode.

This is how you template looks if you are trying it out.


Notice that this sample shows an invalid Units On Order value entered, which is detected when you click on Save button.

If you want to display more fields then there are columns in the view then make sure to define all data fields in grid view and simply add  hidden attribute set to true for each data field, which is not supposed to be displayed as a grid view column but should be available in an inline form.


Lloyd Merithew said...

Everythings works up to this instruction:

Enter the following HTML fragment right after the DataViewExtender in GridTemplate.aspx page.

Code was entered as posted but template Products_grid1 is never displayed. Only default edit row is shown.

What's missing?

Code OnTime said...


The feature works only with Data Aquarium Framework. The template will be displayed if you edit the record in the grid. Select "Edit" option in the context menu of any row to get the template displayed.

We just have tried the following and it is working as expected:

<div id="Customers" runat="server" />
<aquarium:DataViewExtender ID="CustomersExtender" runat="server" Controller="Customers"
TargetControlID="Customers" />
<div id="Customers_grid1">

You can find more about Code OnTime Generator, Data Aquarium Framework, and other great products here.

© 2010 Code OnTime LLC. Intelligent code generation software for ASP.NET. Visit us at
