Lookup Item Styles

Data Aquarium Framework pr0vides a variety of presentation styles for lookup items in your grid and form views.

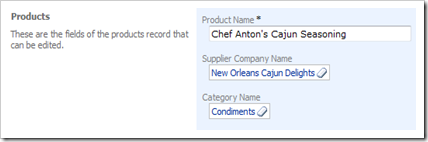

Consider the following screen shot fragment of products form view in application generated by Code OnTime Generator from Northwind database.


Supplier company name and category names are allowing user to select SupplierID and CategoryID in a products table row. If user clicks on a link with category name then the following lookup control is presented.


The eraser icon will clear up the selected category.

This advanced lookup control is displayed thanks to the following configuration of SupplierID and CategoryID fields in ~/Controllers/Products.xml data controller descriptor.

<field name="SupplierID" type="Int32" label="Supplier#">
  <items style="Lookup" dataController="Suppliers"
    newDataView="createForm1" />
</field>
<field name="SupplierCompanyName" type="String" readOnly="true"
  label="Supplier Company Name" />
<field name="CategoryID" type="Int32" label="Category#">
  <items style="Lookup" dataController="Categories" newDataView="createForm1" />
</field>
<field name="CategoryCategoryName" type="String" readOnly="true"
  label="Category Name" />

Style of items is set to Lookup.

The source of items is identified by dataController attribute that refers to a corresponding data controller descriptor.

You can change the style of items for CategoryID field by replacing Lookup with DropDownList.

This will translate into the following presentation.


Notice that N/A option is automatically added to the list since CategoryID field allows null values to be stored in the table column.

Here is how ListBox item presentation style is rendered.


Another popular option is to have lookup items displayed as a radio button list.


You can provide a more compact radio button list by adding columns property to the data field in editForm1 form view as shown in the snippet.

<dataField fieldName="CategoryID" aliasFieldName="CategoryCategoryName"
  columns="3"/>

This is how the presentation of categories has changed.


Grid view is also sensitive to the item style and automatically displays the data as prescribed in data controller file. Here you can see a DropDownList style of the lookup items of CategoryID field.


A common requirement is to have a custom fixed list of values for certain fields in the database tables.

Redefine the items of CategoryID field as shown in the markup example below.

<field name="CategoryID" type="Int32" label="Category#">
  <items style="RadioButtonList">
    <item text="One" value="1"/>
    <item text="Two" value="2"/>
    <item text="Three" value="3"/>
  </items>
</field>

The presentation of the field will change to the following.


If you retain the dataController attribute then both static and dynamic items will show up in a list.


Note that dynamic and static items are always sorted in alphabetical order regardless of their nature.

Lookup style is not supported for static items.

Additional display style CheckBox is provided to support fields with boolean data type only.

3 comments:

Sean Rock said...

I'm using the Checkbox style for one field however i've noticed that it does not work if the column allows null values, i.e. it still shows the drop down with n/a, yes and no (which makes since really). i changed the column to not allow nulls then the checkbox style shows the checkbox.

CallTech World Inc said...

I have Employee Look-up table in Product table. what i want is to hide the Employee look-up table with Current login user name: For example if EmployeeAlex is login with UserName: alex so alex must be shown rather than to see full employee list: How to do that please guide :

Customer Service said...

Set the Text Mode property of the Employee Lookup field to "Static".
