Friday, April 10, 2009

Filtering And Business Rules

Data Aquarium Framework offers a unique approach to creating reusable business rules and logic for ASP.NET applications. Today we will explore filtering with business rules.

All code samples are built for a Data Aquarium application generated from Northwind database.

Task 1

You want to enhance the customer lookup capability of Northwind application to display only USA customers when users are editing orders in a grid view and have a UK customer list when users are editing orders in form view. This should not affect any other views that are presenting customers.

Solution

Create new class Class1 and add property Country as shown in example below.

C#

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using MyCompany.Data;

public class Class1 : BusinessRules
{
    public Class1()
    {
    }

    [RowFilter("Customers", "grid1", "Country")]
    public string Country
    {
        get
        {
            RowFilter.Canceled = String.IsNullOrEmpty(
                RowFilter.LookupContextController);
            if (RowFilter.LookupContextController == "Orders" &&
                    RowFilter.LookupContextView == "editForm1")
                return "UK";
            else
                return "USA";
        }
    }

}

VB

Imports Microsoft.VisualBasic
Imports MyCompany.Data

Public Class Class1
    Inherits BusinessRules

    <RowFilter("Customers", "grid1", "Country")> _
    Protected ReadOnly Property Country() As String
        Get
            RowFilter.Canceled = _
                String.IsNullOrEmpty(RowFilter.LookupContextController)
            If RowFilter.LookupContextController = "Orders" AndAlso _
                    RowFilter.LookupContextView = "editForm1" Then
                Return "UK"
            Else
                Return "USA"
            End If

        End Get
    End Property

End Class

This class is inherited from MyCompany.Data.BusinessRules base.

Property Country is adorned with RowFilter attribute. This attribute will force the framework to evaluate the property whenever grid1 view of data controller Customers is expected to present data. The value of the property will be applied as a server-side filter.

The filtering property Country is notifying the framework that its value shall be ignored when property LookupContextController of RowFilter is null. This can be accomplished by assigning boolean value False to RowFilter.Canceled.

Row filter is constructed only once for each data page request received from the client. The framework will reset the cancellation flag of row filter prior to evaluating each business rules property matched to the requesting data controller view. If evaluation of the property has resulted in cancellation then property value is ignored. Otherwise the value is inserted as a parameterized SQL expression in the WHERE clause of SELECT statement constructed by the framework.

The third argument of RowFilter attribute  applied to Country property specifies the name of the field that must be filtered. This is useful if the property of the business rule is named differently than the actual field defined in the data controller view. It is redundant in our example.

Class BusinessRules features RowFilter property that gives you access to Controller, View, LookupContextController, LookupContextView, and LookupContextFieldName that are useful to determine if and how the filter shall be applied.  Lookup context properties are informing you if the data has been requested by the lookup field. You can examine lookup context field name to apply a server-side filter to the data that might be helpful if the same database lookup data is used to provide lookup values to more than one table in your database. If the data is requested by a standalone data view then you will find that all of the lookup context properties are equal to null.

Multiple RowFilter attributes can be applied to the same property.

Now you have to link the new business rules to Customers data controller defined in ~/Controllers/Customers.xml. This is done by adding attribute handler as shown here.

<dataController name="Customers"
    conflictDetection="overwriteChanges"
    label="Customers" xmlns="urn:schemas-codeontime-com:data-aquarium"
    handler="Class1">
    ......

Run your application or navigate to the online demo at http://dev.codeontime.com/demo/filteringrules/?controller=Orders

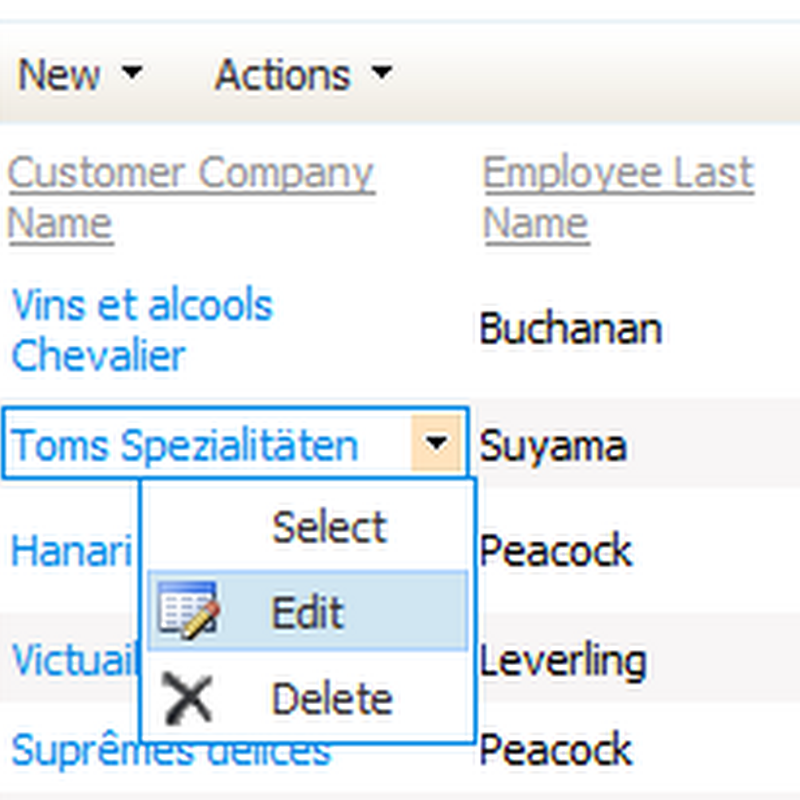

Start editing any order in the grid view of orders.


Click on the link with the customer name.


Customer lookup window will display 13 records of customers from USA.


Press Escape key and click on any other link in Customer Company Name column. Click Edit button to start editing record in the form view editForm1.


Click on the lookup link in Customer Company Name field. Notice that only UK customers are presented.


Let’s see if our business rules have affected the global list of customers. Navigate to http://dev.codeontime.com/demo/filteringrules?controller=Customers. About ninety customer records shall be displayed. We have used RowFilter.Canceled property to prevent filtering when the data is no requested in the context of the lookup field.


Task 2

You want to limit the list of employees to those born between 1/1/1950 and 11/1/1960.

Solution

Continue modifying our class and add BirthDate and BirthDate2 properties.

C#

[RowFilter("Employees", "grid1", "BirthDate",
    RowFilterOperation.GreaterThanOrEqual)]
public DateTime BirthDate
{
    get
    {
        return new DateTime(1950, 1, 1);
    }
}

[RowFilter("Employees", "grid1", "BirthDate",
    RowFilterOperation.LessThanOrEqual)]
public DateTime BirthDate2
{
    get
    {
        return new DateTime(1960, 1, 1);
    }
}

VB

<RowFilter("Employees", "grid1", "BirthDate", _
            RowFilterOperation.GreaterThanOrEqual)> _
            Protected ReadOnly Property BirthDate() As DateTime
     Get
         Return New DateTime(1950, 1, 1)
     End Get
End Property

<RowFilter("Employees", "grid1", "BirthDate", _
            RowFilterOperation.LessThanOrEqual)> _
           Protected ReadOnly Property BirthDate2() As DateTime
    Get
        Return New DateTime(1960, 1, 1)
    End Get
End Property

Link Class1 to ~/Controllers/Employees.xml data controller in the same fashion as we did for Customers data controller. Properties BirthDate and BirthDate2 are creating a range filter for employee field BirthDate.

You can see filtering by BirthDate in action at http://dev.codeontime.com/demo/filteringrules/?controller=Employees.

This filter is consistently applied whenever employee information is presented in data views.

Task 3

You want to filter data based on ASP.NET session variable.

Solution

Business rules have property Context that provide access to standard Request, Response, Session, Cache, and Application objects available in ASP.NET web forms. If you have a value stored in the session variable then you can easily apply its value as a filter.

<RowFilter("Customers", "grid1", "Country")> _
Protected ReadOnly Property CountryFilter() As String
    Get
        Return Context.Session("Country")
    End Get
End Property

Task 4

You want to filter data for a certain user roles.

Solution

The following code will inspect user role if a current user is not a member of Admin role then only customers from Finland are presented. Administrator’s view is not limited by a filter, which is accomplishing by cancelling filtering caused by CountryFilter property.

<RowFilter("Customers", "grid1", "Country")> _
Protected ReadOnly Property CountryFilter() As String
    Get
        If Context.User.IsInRole("Admin") Then
            RowFilter.Canceled = True
            Return String.Empty
        Else
            Return "Finland"
        End If
    End Get
End Property

Remember that if multiple filter properties are applicable to a give data page request then each filtering property must cancel row filter on its own.

Conclusion

Business rules in Data Aquarium Framework web applications allow efficient data filtering logic that is reused throughout your application. Subscribe to premium projects and start being productive today.

9 comments:

John Li said...

Very good example but the filter value is fixed in it. How to use dynamic value?

Customer Service said...

Use data stored in Session object by accessing

Context.Session[“MyProperty”]

or make a request to the database and use

Context.Current.User.Identity.Name

to retrieve data specific to a current user. Note that Session is the property of BusinessRuless class.



You can also use references to business rules properties in view filters. Read about view filters at http://blog.codeontime.com/2010/05/sort-and-filter.html.

John Li said...

Thanks a lot for your quick response. Your support is excellent.
But there's a issue with the Session that it expires much more easier than user.identity. I think the page is not freshed because of Ajax. I don't have the issue with other my website.
Another problem is that the lookup value can't read the value in the previous filled in data, e.g. I filled the field Category as Beer, and then I want to look up the Beer Brands from the Beer Table, and I want to filter the display only Beers not other products. If I filled the Bread, then I want to view only Bread brands.

Customer Service said...

John,

Every server interaction initiated by Ajax client library extends the life of session.

You can find more information about context fields at http://blog.codeontime.com/2008/10/context-sensitive-data-lookups.html.

John Li said...

Very good article! Thanks a lot.

Guru said...

Hi..
I am new to COT, i need to filter a lookup field based on another lookup field value. Both lookup field is present on the same form.
For eg: I have region as one lookup field and location as another lookup field. If i select region, the location lookup field should load data based on the selected region. How to filter it.

Guru said...

Hi..
I am new to COT, i need to filter a lookup field based on another lookup field value. Both lookup field is present on the same form.
For eg: I have region as one lookup field and location as another lookup field. If i select region, the location lookup field should load data based on the selected region. How to filter it.

Guru said...

Hi..
I am new to COT, i need to filter a lookup field based on another lookup field value. Both lookup field is present on the same form.
For eg: I have region as one lookup field and location as another lookup field. If i select region, the location lookup field should load data based on the selected region. How to filter it.

Customer Service said...

Please take a look at the following post.

You can find more about Code OnTime Generator, Data Aquarium Framework, and other great products here.


© 2010 Code OnTime LLC. Intelligent code generation software for ASP.NET. Visit us at http://codeontime.com
