Thursday, March 22, 2012

Calculating Freight

The calculation will analyze Order ID and current Freight value:

If the order total is greater than $100, then Freight will be $19.95 flat.
Otherwise, Freight is $3.95.

The Order Form page will allow overriding the Freight value.

Switch to Visual Studio. If it is not open, exit the Designer, click on the project name in the generator, and press Develop. Open App_Code / Rules / OrdersBusinessRules.cs(vb) file.

This is how the method is implemented. You can copy the implementation into your own project. The method CalculateFreight takes nullable integer orderID and decimal freight, and returns a decimal value. It calls CalculateOrderDetailsTotal method to find the total price of order details. If Freight is equal to blank, 0, 3.95, or 19.95, then it will be returned as 19.95 for Total greater than $100, or 3.95 for Total under $100. If the conditions are not met, then Freight will not be affected.


namespace MyCompany.Rules
    public partial class OrdersBusinessRules : MyCompany.Data.BusinessRules
        public decimal CalculateOrderDetailsTotal(int? orderID)
            using (SqlText calc = new SqlText(@"select sum(unitprice *
                                        quantity * (1 - discount)) from
                                        [Order Details] where OrderID= @OrderID"))
                calc.AddParameter("@OrderID", orderID);
                object total = calc.ExecuteScalar();
                if (DBNull.Value.Equals(total))
                    return 0;
                    return Convert.ToDecimal(total);
        public decimal CalculateFreight(int? orderID, decimal? freight)
            decimal total = CalculateOrderDetailsTotal(orderID);
            if (!freight.HasValue || freight.Value == 0 ||
                freight.Value == 3.95m ||
                freight.Value == 19.95m)
                if (total > 100)
                    return 19.95m;
                    return 3.95m;
                return freight.Value;


Namespace MyCompany.Rules
    Partial Public Class OrdersBusinessRules
        Inherits MyCompany.Data.BusinessRules
        Public Function CalculateOrderDetailsTotal(
                ByRef orderID As Nullable(Of Integer)) As Decimal
            Using calc As SqlText = New SqlText("select sum(unitprice *" +
                    "quantity * (1 - discount)) from [Order Details] " +
                    "where OrderID=@OrderID")
                calc.AddParameter("@OrderID", orderID)
                Dim total As Object = calc.ExecuteScalar()
                If DBNull.Value.Equals(total) Then
                    Return 0
                    Return Convert.ToDecimal(total)
                End If
            End Using
        End Function
        Public Function CalculateFreight(ByRef orderID As Nullable(Of Integer),
                                    ByRef freight As Nullable(
                                    Of Decimal)) As Decimal
            Dim total As Decimal = CalculateOrderDetailsTotal(orderID)
            If Not freight.HasValue Or freight.Value = 0 Or
                freight.Value = 3.95 Or
                   freight.Value = 19.95 Then
                If total >= 100 Then
                    Return 19.95
                    Return 3.95
                End If
                Return freight.Value
            End If
        End Function
    End Class
End Namespace

Go back to the Project Explorer, and select Orders from the Controllers list. Open Fields node, and double-click on Freight. Enter the following settings:

Property Value
The value of this field is calculated by a business rule expression True
Code Formula
CalculateFreight(orderID, freight)
Context Fields OrderDetails

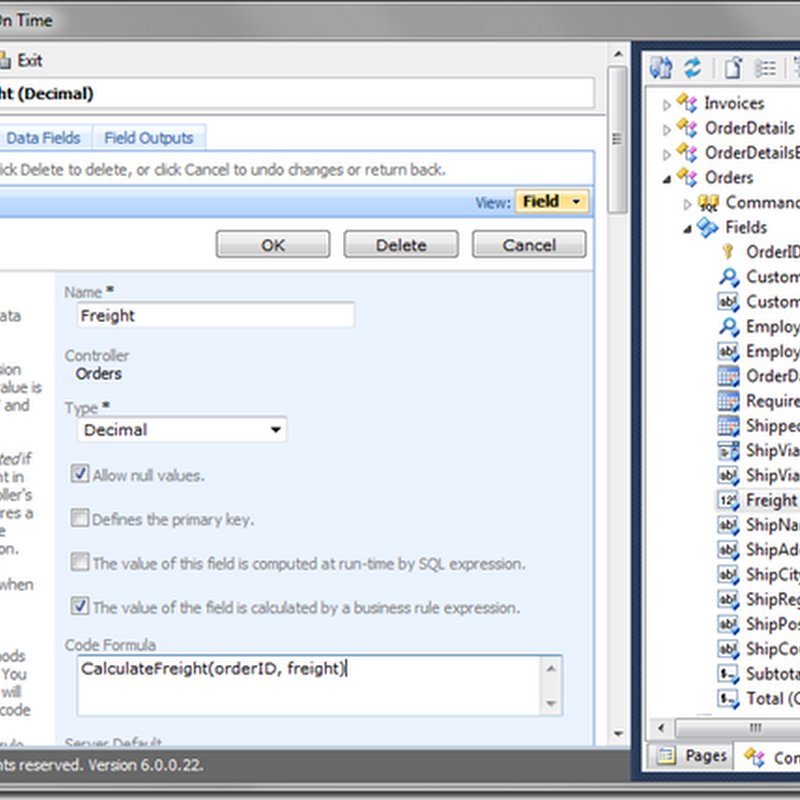

Code Formula for 'Freight' field in Code On Time Designer

Save the field, and regenerate the application. Edit an order, and change the Freight to “0”. When you tab away from the field, the freight will be recalculated.

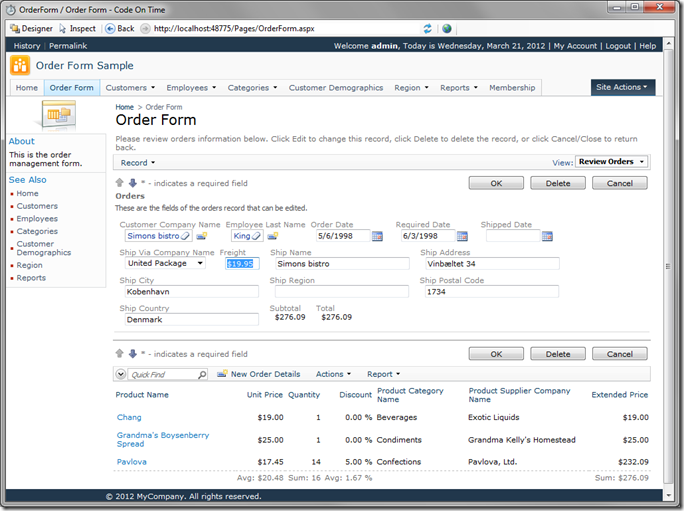

'Freight' field calculation in the Order Form

If you change the order details so that the Subtotal is less than than $100, you will see Freight be recalculated to $3.95.

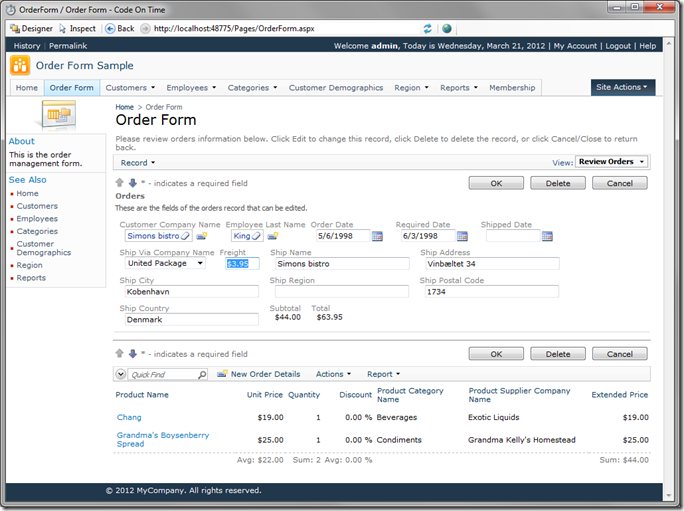

'Freight' field recalculated to 3.95 in the Order Form

Let’s take a quick look at the Orders business rules class that was automatically created by the code
generator for us. You can see that we have a partial class OrdersBusinessRules with method
CalculateOrders adorned with attributes ControllerAction, which respond to Calculate action. The
method calculates Freight, Subtotal, and Total fields by calling CalculateOrderDetailsTotal and
CalculateFreight with orderID passed as an argument.


using System;
using System.Data;
using System.Collections.Generic;
using System.Linq;
using System.Text.RegularExpressions;
using System.Web;
using System.Web.Security;
using MyCompany.Data;

namespace MyCompany.Rules
    public partial class OrdersBusinessRules : MyCompany.Data.BusinessRules
        [ControllerAction("Orders", "Calculate", "Freight")]
        [ControllerAction("Orders", "Calculate", "Subtotal")]
        [ControllerAction("Orders", "Calculate", "Total")]
        public void CalculateOrders(
                    int? orderID,
                    string customerID,
                    string customerCompanyName,
                    int? employeeID,
                    string employeeLastName,
                    DateTime? orderDate,
                    DateTime? requiredDate,
                    DateTime? shippedDate,
                    int? shipVia,
                    string shipViaCompanyName,
                    decimal? freight,
                    string shipName,
                    string shipAddress,
                    string shipCity,
                    string shipRegion,
                    string shipPostalCode,
                    string shipCountry,
                    decimal? subtotal,
                    decimal? total)
            UpdateFieldValue("Freight", CalculateFreight(orderID, freight));
            UpdateFieldValue("Subtotal", CalculateOrderDetailsTotal(orderID));
            UpdateFieldValue("Total", CalculateOrderDetailsTotal(orderID) + freight);
        [RowBuilder("Orders", RowKind.New)]
        public void BuildNewOrders()
            UpdateFieldValue("OrderDate", DateTime.Now);


Imports MyCompany.Data
Imports System
Imports System.Collections.Generic
Imports System.Data
Imports System.Linq
Imports System.Text.RegularExpressions
Imports System.Web
Imports System.Web.Security

Namespace MyCompany.Rules

    Partial Public Class OrdersBusinessRules
        Inherits MyCompany.Data.BusinessRules

        <ControllerAction("Orders", "Calculate", "Freight"), _
         ControllerAction("Orders", "Calculate", "Subtotal"), _
         ControllerAction("Orders", "Calculate", "Total")> _
        Public Sub CalculateOrders( _
                    ByVal orderID As Nullable(Of Integer), _
                    ByVal customerID As String, _
                    ByVal customerCompanyName As String, _
                    ByVal employeeID As Nullable(Of Integer), _
                    ByVal employeeLastName As String, _
                    ByVal orderDate As Nullable(Of DateTime), _
                    ByVal requiredDate As Nullable(Of DateTime), _
                    ByVal shippedDate As Nullable(Of DateTime), _
                    ByVal shipVia As Nullable(Of Integer), _
                    ByVal shipViaCompanyName As String, _
                    ByVal freight As Nullable(Of Decimal), _
                    ByVal shipName As String, _
                    ByVal shipAddress As String, _
                    ByVal shipCity As String, _
                    ByVal shipRegion As String, _
                    ByVal shipPostalCode As String, _
                    ByVal shipCountry As String, _
                    ByVal subtotal As Nullable(Of Decimal), _
                    ByVal total As Nullable(Of Decimal))
            UpdateFieldValue("Freight", CalculateFreight(orderID, freight))
            UpdateFieldValue("Subtotal", CalculateOrderDetailsTotal(orderID))
            UpdateFieldValue("Total", CalculateOrderDetailsTotal(orderID) + freight)
        End Sub

        <RowBuilder("Orders", RowKind.New)> _
        Public Sub BuildNewOrders()
            UpdateFieldValue("OrderDate", DateTime.Now)
        End Sub
    End Class
End Namespace
